2-Achs Delta-Roboter | 2 DOF| 400 mm | 5kg


Part No.: RBTX-IGUS-0055

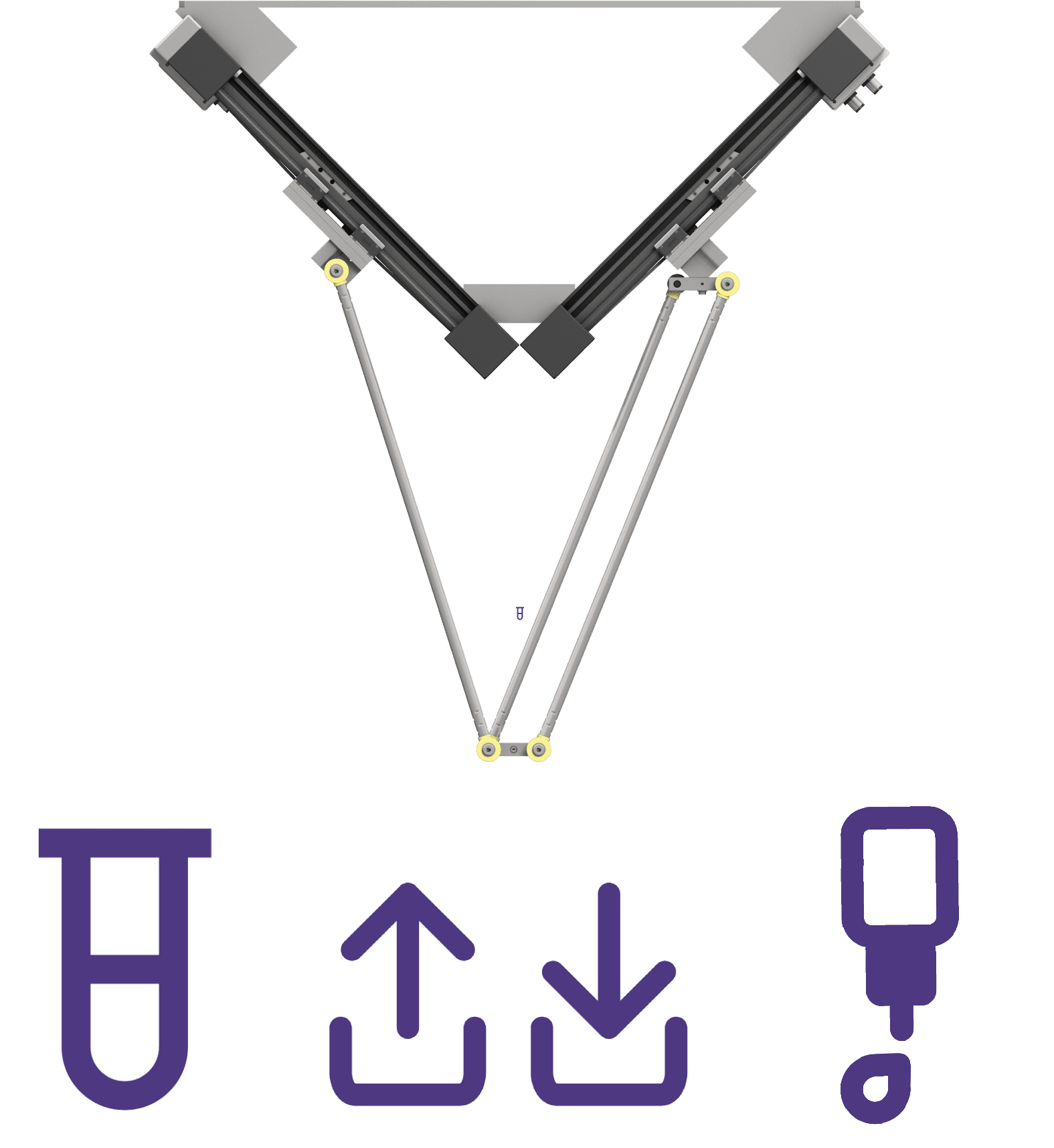

High-Speed 2-Axis Delta Robot for Dynamic Pick-and-Place Tasks

The preassembled 2-axis delta robot from igus® features a 400 mm working diameter, 5 kg payload, and ±0.5 mm repeatability. With speeds up to 3 m/s and acceleration of 60 m/s², it’s ideal for fast sorting and conveyor applications.

The included controller enables easy integration into existing systems. Common protocols like Modbus TCP, Ethernet/IP, and more are supported via the igus® Robot Control platform.

Recommended for pick & place, sorting, stacking, and conveyor-based tasks. Perfect for companies seeking a compact, cost-effective, and high-performance automation solution.

Usual delivery time: 3 weeks

Working Space Diameter
400
mm
DOF
2
Max Payload
5
kg
Max Speed
3
ms
Max Acceleration
60
m
Repeatability
0.5
mm

Highlights

https://a.storyblok.com/f/298593/1575x1716/59ccca61aa/lca_prod_dle-zr-0001_shop_1-3.png

Application areas

Typical applications of our drylin® delta robots are pick and place, conveyor belt picking and stacking tasks in three-dimensional space. In combination with a gripper or suction cup, picking tasks can be implemented very quickly.

https://a.storyblok.com/f/298593/476x524/7517f560ff/lca_gen_irc-mockup-pc_de_1-removebg-preview__1_.png

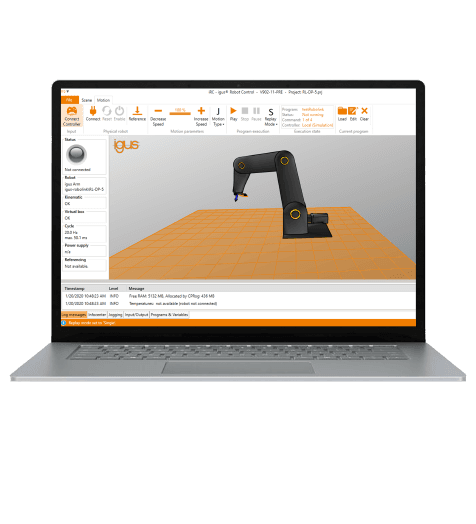

igus® Robot Control - One free Software for all igus® robots

Download the software now free of charge. This allows you to familiarize yourself with the user interface and functions before purchasing the components. The Digital Twin gives you an overview of the possibilities of your robot. (System requirements: Windows 10, free USB 2.0 port, Ethernet port, 500 MB free disk space).
