Dobot MG400 | 4DOF | 440mm | 0,75kg
Dobot MG400 – Compact desktop robot for precise automation
The Dobot MG400 is a 4-axis industrial robot with a 750 g payload, 440 mm reach, and ±0.05 mm repeatability. Its compact design makes it ideal for use on lab benches or in small production cells.
It supports DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS. Easy integration and intuitive operation ensure fast deployment and flexible control.
Recommended for pick & place, lab automation, testing systems, light assembly, and educational or research applications.
Highlights
Further technical details
Comprehensive industrial quality, designed for a continuous workload
Professional hardware: modern servo drive technology with a high-precision absolute encoder
High precision: through absolute encoders a repeatability of ±0.05mm
With the vibration suppression algorithm in the controller and ensured trajectory accuracy of multi-axis motion the repeatability bandwidth stabilization time is accelerated by 60%, and the residual vibration by 70%
Freedrive mode: manual guidance to teach complex trajectories
Wide range of possibilities to program the robot: Graphical programming via Blockly, support of e.g. Python or Lua script
Scope of delivery
DOBOT MG400
Ethernet cable
Zero position fixture
Suction cup (diameter 20 mm)
Flange adapter
Emergency stop
Power supply
Tool kit
Documentation (Shipping list, quick start guide, etc.)
english/chinese
Vacuum pump is not included in the scope of delivery.

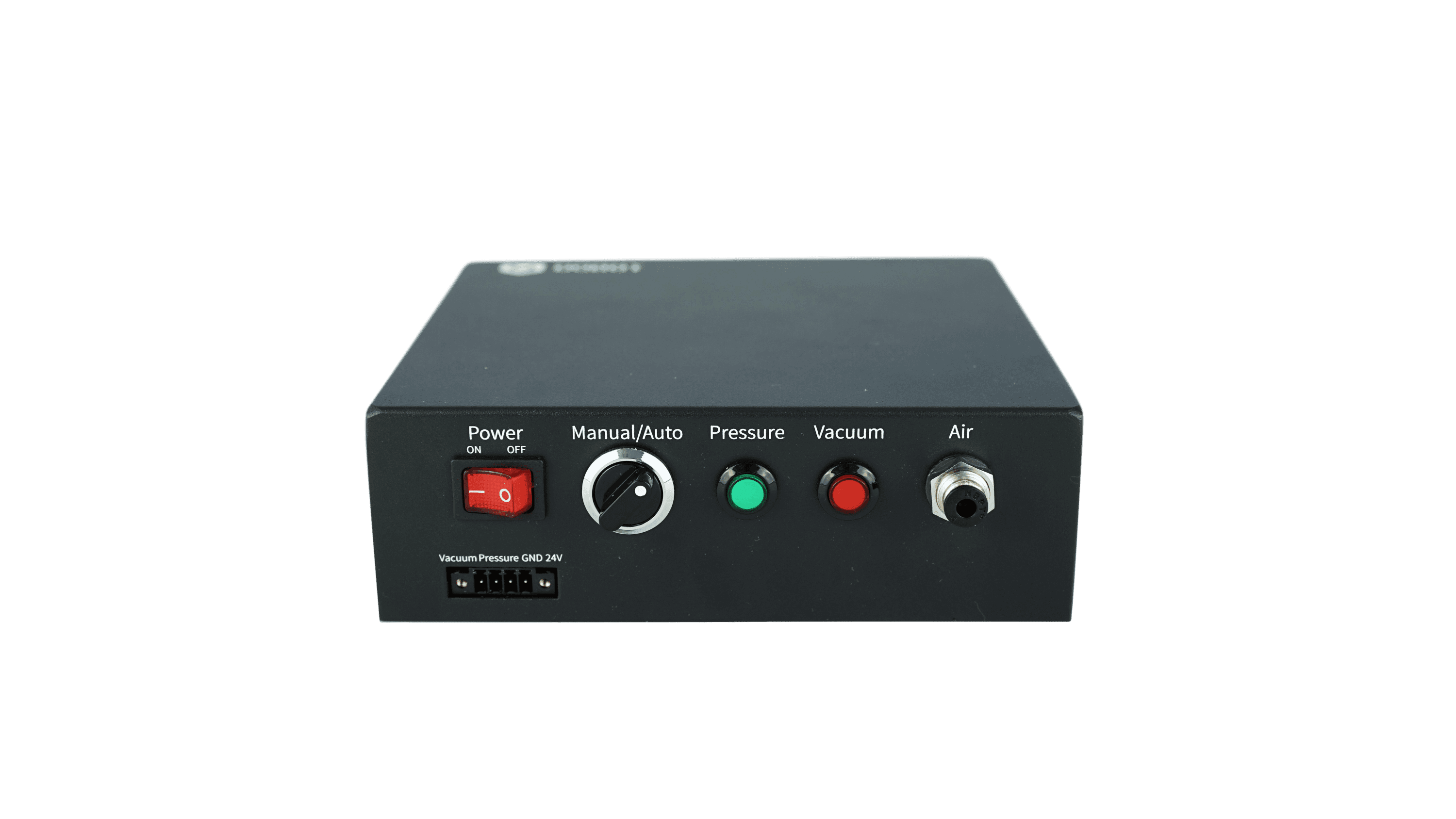

Optional: vacuum pump
Click here to find the vacuum pump suitable for the DOBOT MG 400:
