Automated gluing with robot
Giá của phần cứng:
Build
DIY
Characteristic
Lubricant-free
Characteristic
quiet

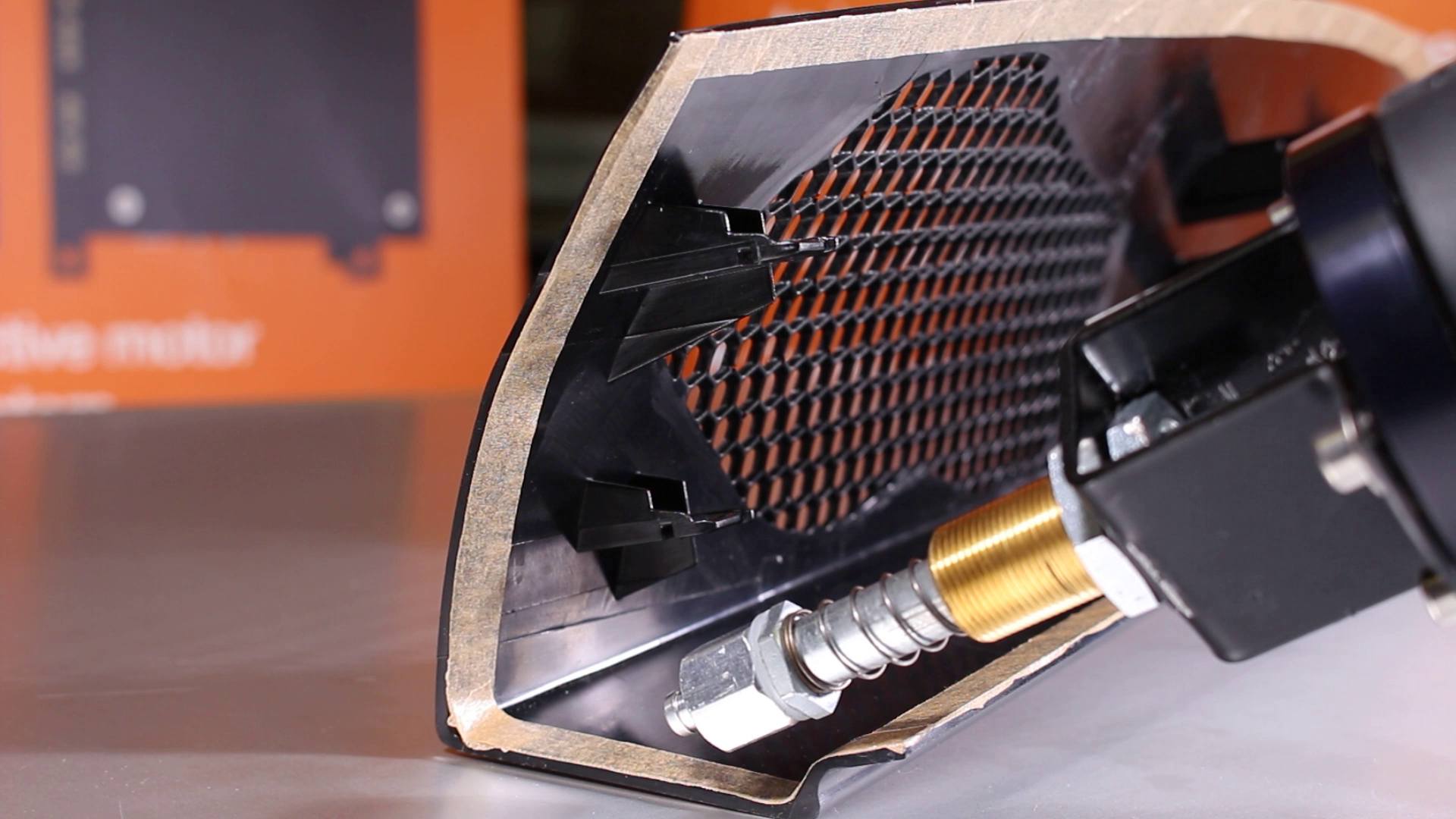

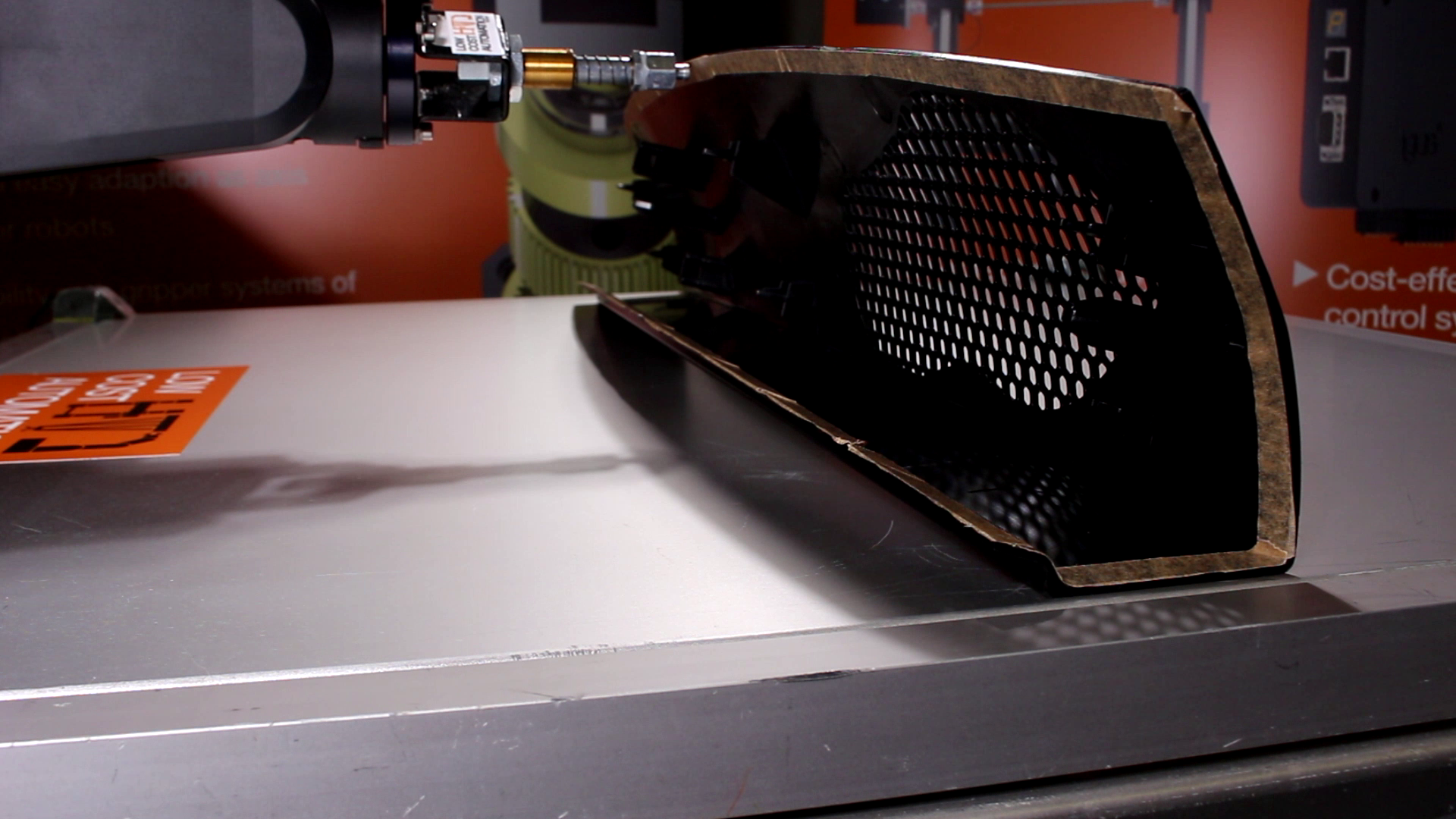

In this application, the adhesive is applied to the marked area using a Robolink DP 5-axis robot and a syringe dispensing system mounted on the robot. As part of the programming, the customer-specific component was previously traversed.

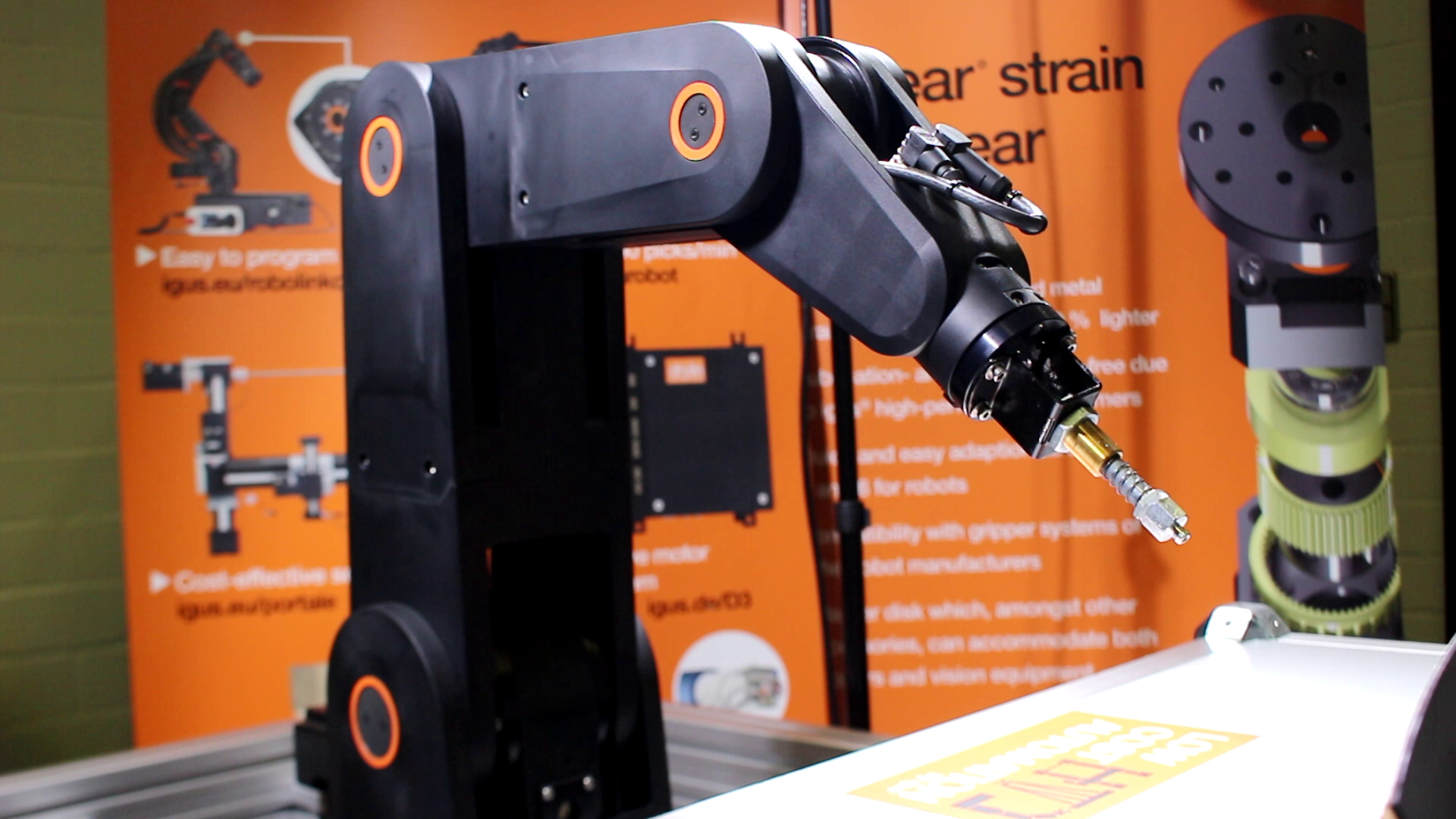

The Robolink DP 5 is a 5-axis robot with a reach of 790 mm and a maximum payload of 3 kg. If additional working space is required, the DP 5 can also be additionally mounted on a drylin® seventh axis. With the igus Robot Control, the jointed-arm robot can be easily programmed for the appropriate application.
