Robolink - Integrated Controller, 5 Degrees of Freedom, Reach 680 mm
The robolink® robot arm allows you to automate manual work steps quickly and easily. The predefined 5-axis kinematics with lubrication-free joints can be equipped with various tools (e.g., grippers, suction cup, camera) as desired. Ultra-compact thanks to its integrated controller. No need for a separate control cabinet. Equipped with a 3.5" touchscreen panel for easy control. Flexible with 1 digital in/out module providing 4 inputs and 4 outputs on 24 V level. Can be increased to 3 modules.
Điểm nổi bật
didaktisches Lernmaterial inklusive
Auf der Seite von igus® finden Sie auf die Roboter zugeschnittene Lerninhalte. Power-Point Präsentationen, Arbeitsblätter, Videos und Seminare helfen dabei, das Wissen über Robotik und Low Cost Automation zu vertiefen.
Die LCA Learning Seite steht Ihnen dabei vollkommen kostenlos und uneingeschränkt zur Verfügung.
Download now and try it out in advance

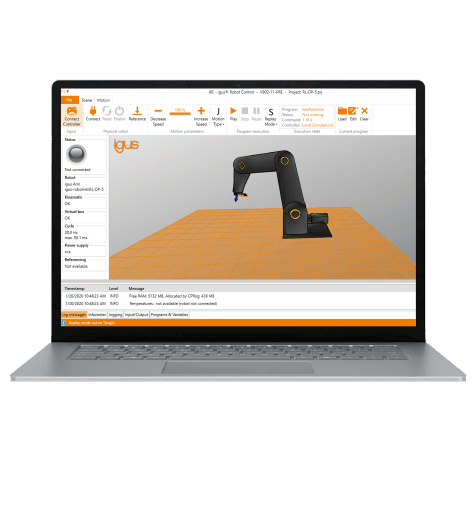

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)
Choose the right setup for you.
You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen. On the PC the robot can be programmed via a graphical user interface. With the handheld you can control the robot with a joystick and start programs via the touch screen. In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld. With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
